CZ93-K1 Door Safety Interlock Switch Actuating Key Silver Tone Direct Acting Furniture Electric Hardware Durable Tool

Description:
100% brand new and high quality
Features:

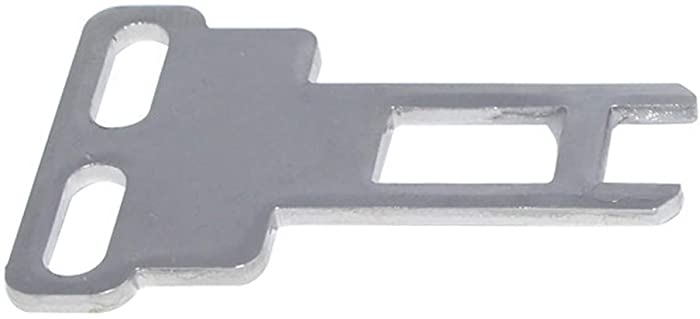

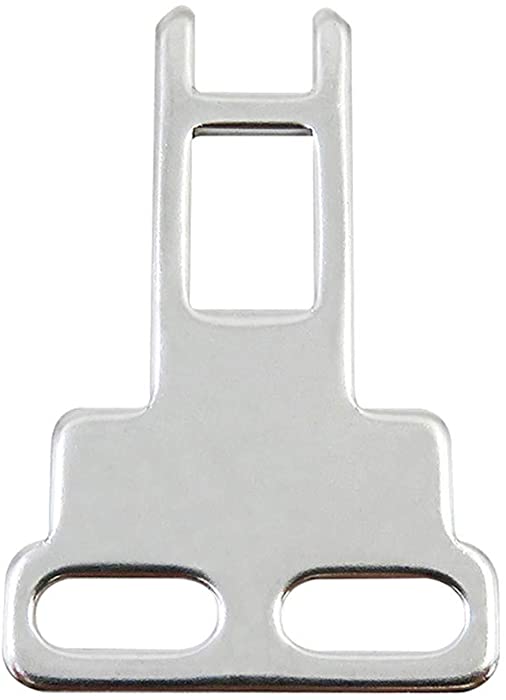

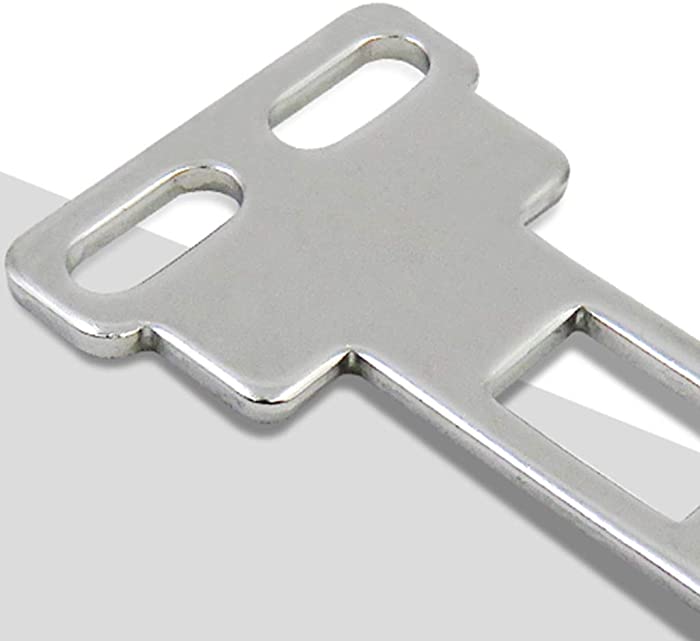

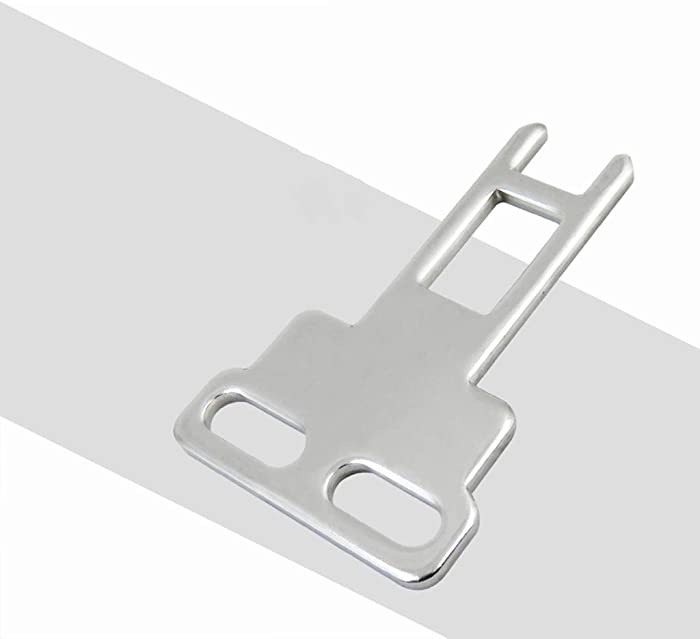

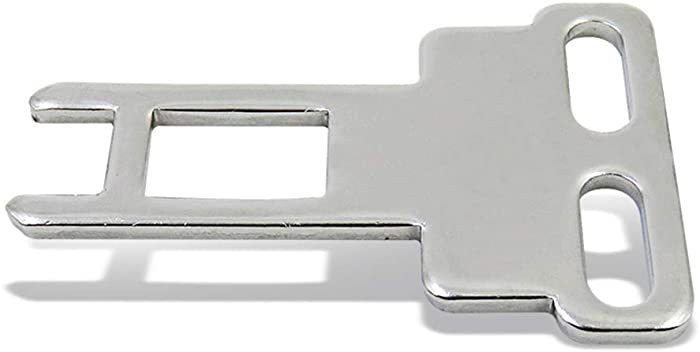

Safety Interlock Switch Key
Characteristic:
Rating: 3A 240VAC (A300)
Operating speed: 0.1m~0.5m/s
Operating frequency: 30operations/minute
Contact resistance: 20mΩmax.(initial)
Insulation resistance: 100mΩmin.(at 500VDC)
Rated insulation voltage(UI): 400V
Dielectric strength: AC2500V/Umip 4KV
Vibration shock: mechanical: Approx.100G''S, electrical: Approx.30G''S
Ambient temperature: -10℃~+70℃ (with no icing)
Ambient humidity: ＜95% RH
Life: mechanical:10000000 operations/min, electrical: 150000 operations/min
Degree of protection: IP65 (EN60947-5-1)
Short-circuit protective device: 10A fuse

Specification:
Type: Interlock Switch Key
Material: Metal
Features: Interlock Switch Key, Door Safety, Actuating, Direct Acting, Furniture Electric, Hardware, Durable Tool
Dimension: app.4.5x1.3x3cm/1.77x0.51x1.18in
Color: Silver
Quantity: 1 Pc

Note:
1.Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
2.Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

Package includes:
1 Pc x Interlock Switch Key
