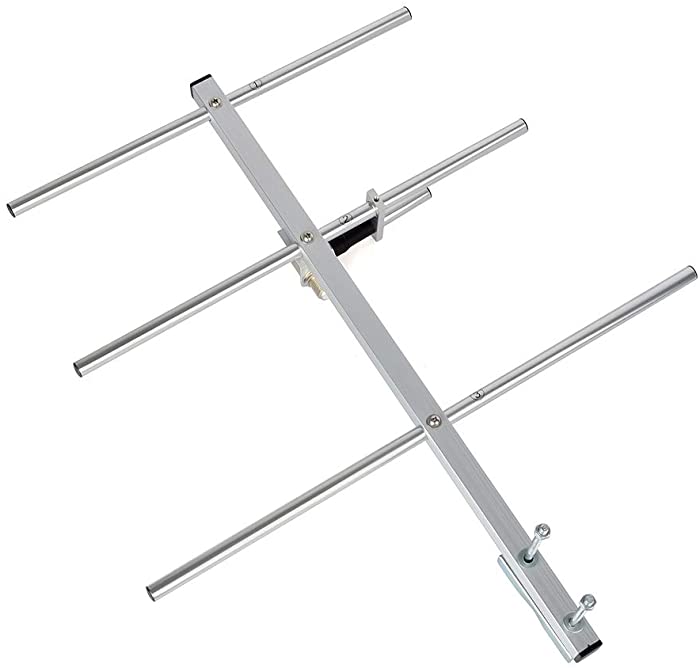

100W YAGI Antenna

Not includes: Cable & Radio

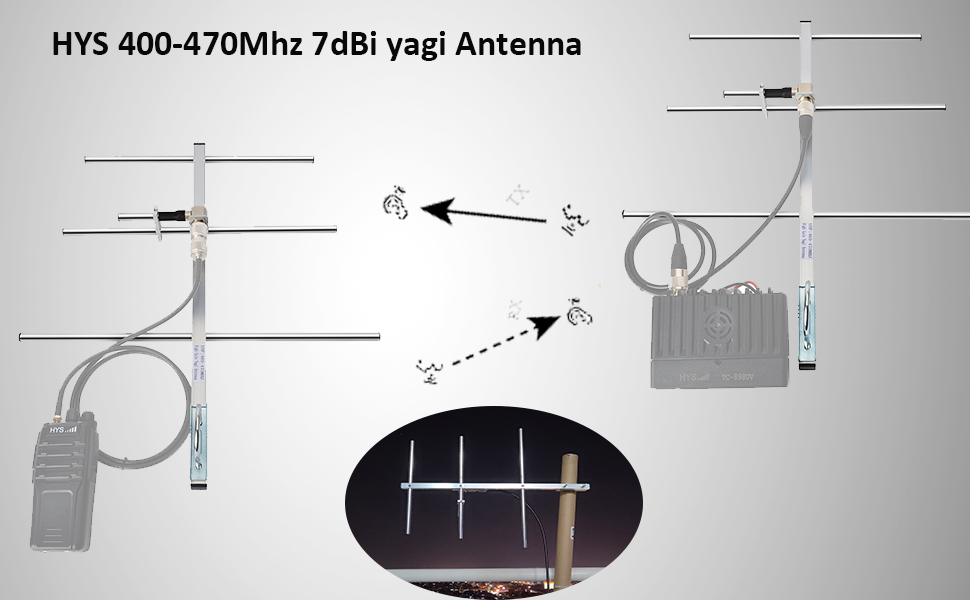

UHF Yagi antenna is the most popular type of directional antenna in use today. The 7dBi 400-470Mhz Outdoor Yagi Antenna offers 53 degree Vertical and 45 degree Horizontal 3dB Beamwidth.

The Yagi antenna operates without the need for a grounding in most cases. However, you can ground antenna via the outer conductor of the connector and the cable, or through the mounting hardware, recommend you install a lightning surge protector between the Yagi and a device to prevent a lightning strike to the antenna from damaging your device and equipment.

PAY ATTENTION: YAGI ANTENNA FREQUENCY 400-470MHZ UHF, NOT 2 METER VHF ANTENNA OR CB YAGI ANTENNA. Please carefully check the description, don't fantasize about functionality.

UHF Yagi Antenna

HYS High gain Antenna

Please contact HYS Communication Store for technical support issue before sending back to vendor.

UHF YAGI ANTENNA

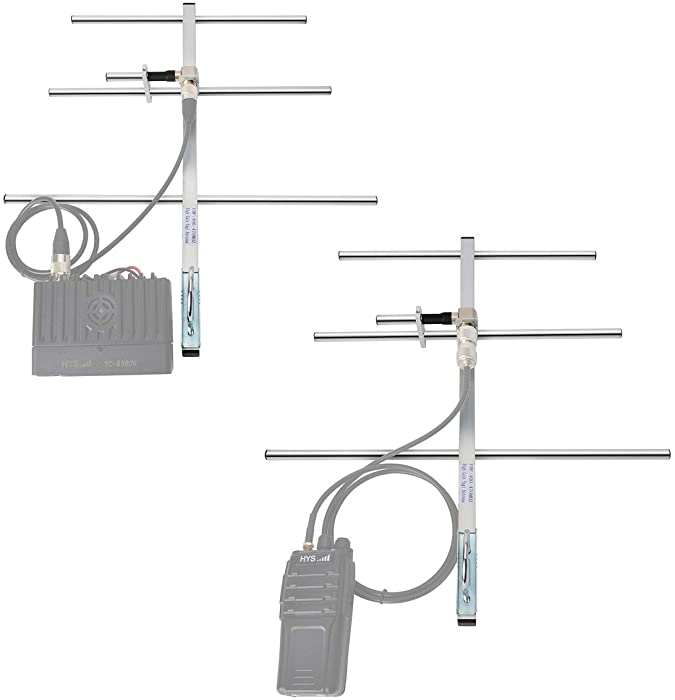

ELECTRICAL SPECIFICATIONS((Improve two-way radio&mobile radio talk distance)

Frequency Range: 400~470 MHz

Bandwidth:20MHz

Impedance:50Ω

VSWR:＜1.5

Polarization:Vertical

Horizontal 3dB Beam Width: 53°

Vertical 3dB Beam Width: 45°

Front To Back Ratio: >15 dB

Lighting Protection: Direct Ground

• Maximum Power Input-watts: 100 W
• Gain:7 dBi
• Connector: SL16 female(UHF FEMALE)
• Size: 430 x 380x 48mm
• Mounting hardware:Ø30～Ø40 mm
• Rated Wind Velocity:60 m/s

UHF YAGI ANTENNA DETAILS INTRODUCE

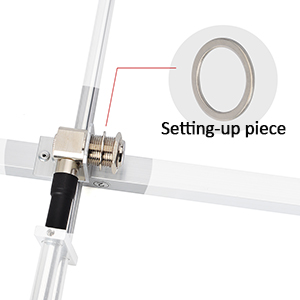

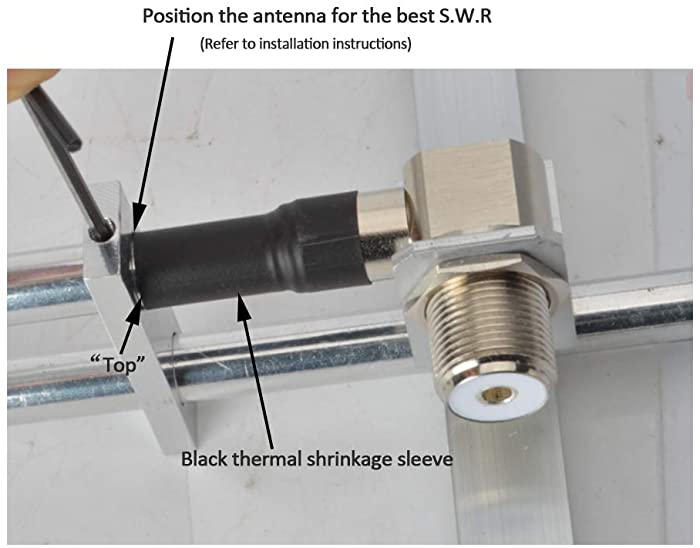

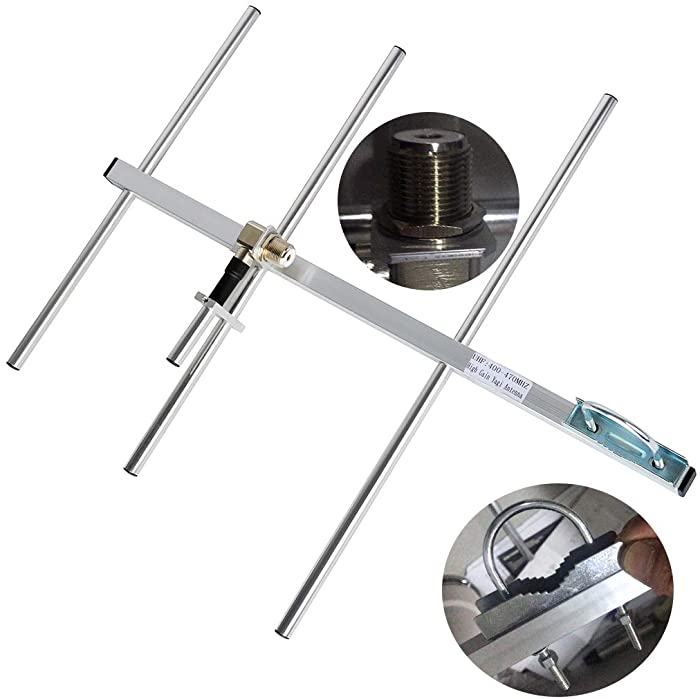

SL-16 FEMALE Connector

Several kinds of Connector are available now and connector the needs for different screw thread types on the market.

HYS SL-16 FEMALE Connector is longer than other connector, do not affect usage effect, please don't mind appearance.

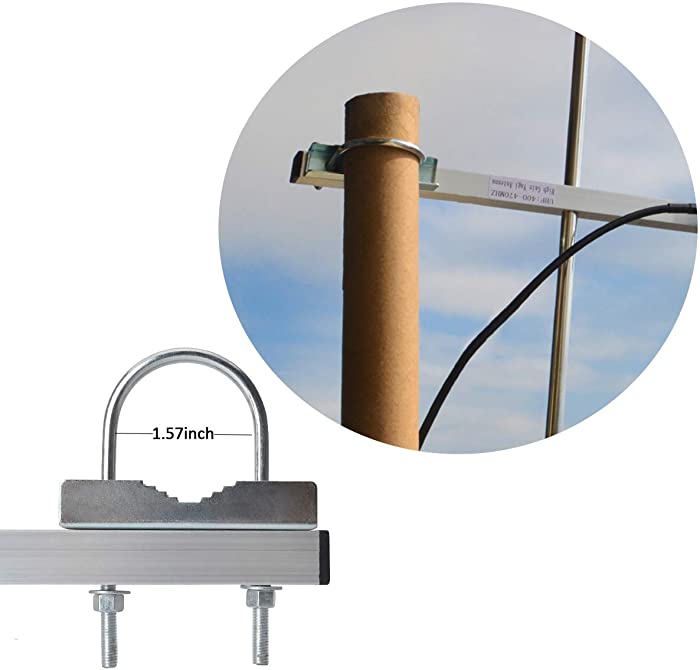

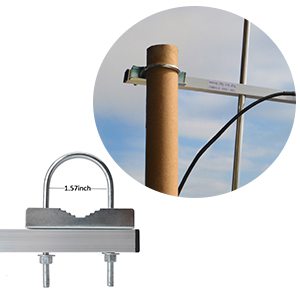

U-Bolt

Diameter:4cm (1.57inch).

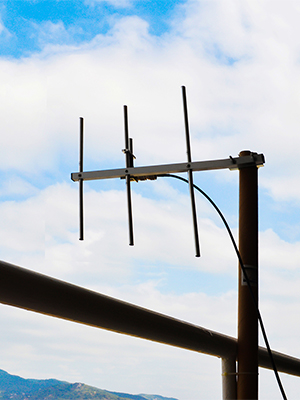

Excellent solution for outdoor installations.

It comes with U-bolts which can be used with the attached plate for pole mounting. It allows vertical polarization.

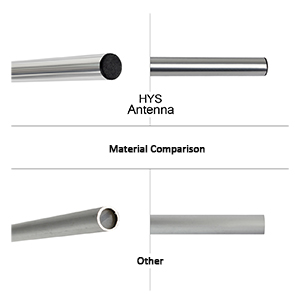

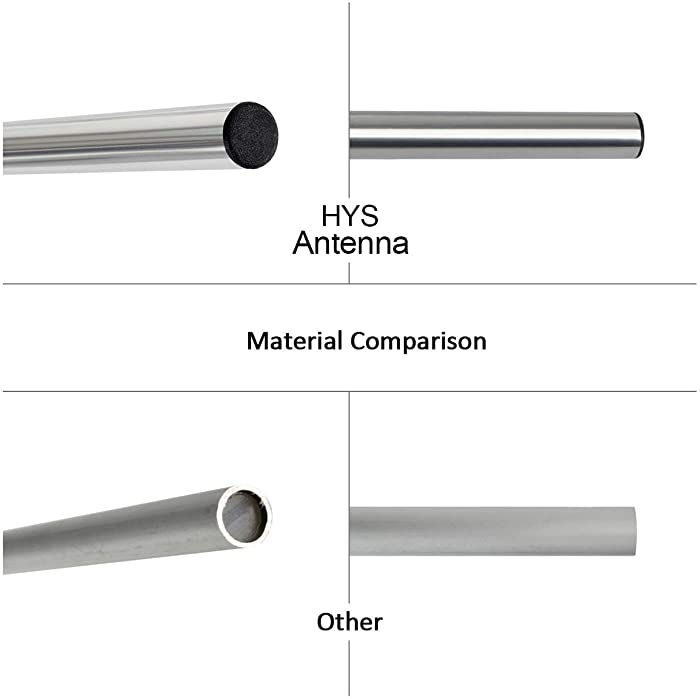

Yagi antenna material

Electroplating and polishing for element, oxidation resistance and corrosion resistance.

Made from long lasting, top grade electro-polished aluminium alloy.

HYS Yagi Antenna Superior construction to withstand tough outdoor weather conditions.

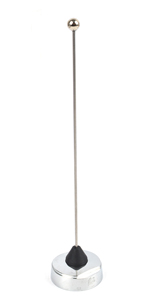

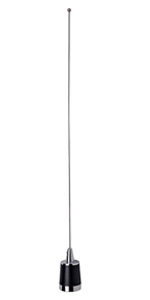

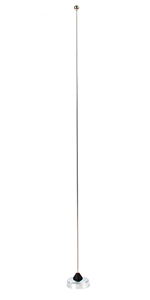

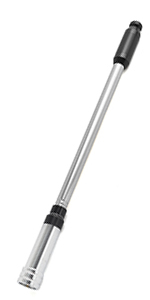

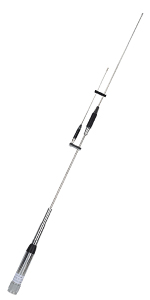

	Mult-Band Antenna	CS Tactical Antenna	VHF NMO Antenna	UHF NMO Antenna	NMO Dual Band Antenna	Sma female Antenna
Frequency	144/245/430Mhz	144Mhz/430Mhz	136-174Mhz	400-470Mhz	144Mhz/430Mhz	144Mhz/430Mhz
Gain	3.5dBi/4.5dBi/6dBi	3.5dBi/5.5dBi	2.5dBi	2.5dBi	144MHz (3.0dBi),430MHz(5.0dBi)	2.15/3.2dBi
Maximum Power Input-watts	100W	70W	150W	150W	100W	20W
Antenna length	37.9inch	Length Approx: 39cm (15.3inch) to 95cm(37.4inch), different antenna length, the antenna effect is different; Antenna+Gooseneck=73.5cm (28.9inch) to 129.5cm (50.9inch).	17.8inch	6.4inch	20inch	15.3inch
Connector	UHF MALE	UHF MALE	NMO	NMO	NMO	SMA FEMALE
VSWR	≤1.5	≤1.5	≤1.5	≤1.5	≤1.5	≤1.5

Product information

Videos

1. For this product



   10:50

   Customer Review:

   Tiny, but Effective

   Grant Fritchey

2. For this product



   4:26

   HYS 7dBi Yagi Antenna

   HYS Communication

3. For related products



   4:29

   TWAYRDIO Outdoor Yagi Antenna 100W 400-470MHz High Gain Antenna for UHF Mobile Radio

   Trust communication

4. For related products



   0:46

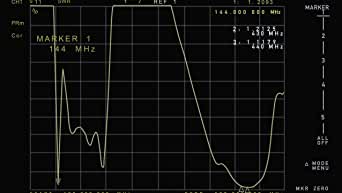

   Professional equipment testing-HEWLETT PACKARD 8753D
