At a glance:

• Hospital grade with green dot on face for identification
• Wire terminal covers provide insulation and isolation
• Self-grounding
• Impact-resistant polycarbonate thermoplastic
• 20A 125VAC, 5-20R
• Clamp wiring, #10-#14 copper only wire

Properly Labeled

Green circle marking on outlet face clearly indicates hospital grade.

Protective Barriers

Wire terminal covers provide insulation and prevent terminals from touching the junction box.

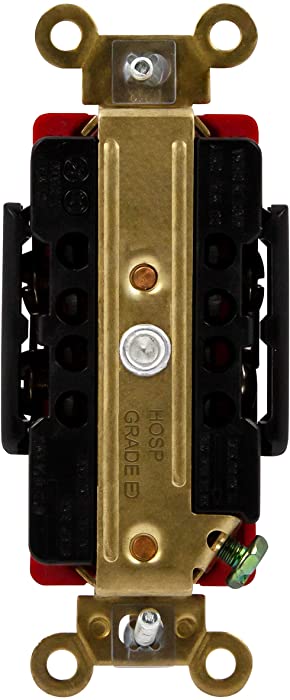

Self Grounding

Clip allows automatic grounding connection when installed in a grounded metal junction box.

Plaster Ears

For new work and flush installation into junction boxes. Removable when installing in old work junction boxes.

Features

Fits Standard Duplex Receptacle Wall Plate – Dimensions: 4.50” Height x 2.76” Length

Outlet Body – Dimensions: 4.09” Height x 1.31” Length x 1.10” Depth. Fits duplex receptacle wall plate openings.

Acceptable Wiring – #10-#14 AWG copper wire only, clamp wiring allows for quick insertion of wires into back of the outlet.

Operating Temp – From -104°F (without impact) to 167°F maximum continuous, UL94 V2 Rating

	61510	62010	62020
Grade and Type	Industrial Grade, Isolated Ground	Industrial Grade, Isolated Ground	Hospital Grade
Specs	15A 125VAC, 5-15R	20A 125VAC, 5-20R	20A 125VAC, 5-20R
Wiring	#10-#14 AWG copper wire; clamp wiring	#10-#14 AWG copper wire; clamp wiring	#10-#14 AWG copper wire; clamp wiring
Material	Polycarbonate thermoplastic	Polycarbonate thermoplastic	Polycarbonate thermoplastic
Available Colors	White, Orange	White, Ivory, Orange	White, Ivory, Orange, Red
Wall Plate Compatibility	Duplex Receptacle	Duplex Receptacle	Duplex Receptacle

Description

ENERLITES hospital grade duplex receptacles are high quality, heavy duty outlets specifically designed for hospital use. This hospital grade outlet features two side barriers that cover the wire terminals for insulation and isolation from the junction box. These outlets will save on installation costs due to the built-in self-grounding tab. This device’s compliance with UL’s safety and quality standards are clearly marked along with its specifications and a green circle marking on the front of the outlet to indicate hospital grade, providing for quick and easy access to inspectors.

Included in the box:

• Outlet
• Installation instructions
• 1-Year Warranty

Technical Specifications:

• Power Rating: 20A 125V
• 5-20R, self-grounding, 2-pole, 3-wire
• UL Listed

Product information

Manufacturer	‎ENERLITES
Item Weight	‎3.34 ounces
Package Dimensions	‎4.33 x 1.77 x 1.22 inches
Color	‎Red
Style	‎20A, Red
Material	‎Polycarbonate Thermoplastic
Voltage	‎125 Volts
Amperage Capacity	‎20 Amps
Certification	‎UL
Special Features	‎Hospital grade
Batteries Included?	‎No
Batteries Required?	‎No

Additional Information

• ASIN: B07YBKKHWW
• Customer Reviews: 4.6 out of 5 stars 41Reviews
• Best Sellers Rank: #112,827 in Tools & Home Improvement (See Top 100 in Tools & Home Improvement) #317 in Standard Electrical Outlets
• Date First Available: September 24, 2019

Product Warranty: For warranty information about this product, please click here

Important information

Bulb Voltage :

125 volts

Brief content visible, double tap to read full content.Full content visible, double tap to read brief content.

Videos

Page 1 of 1Start OverPage 1 of 1

1. For related products



   6:15

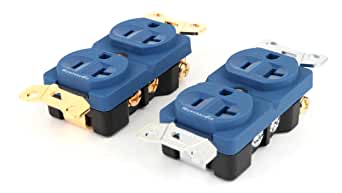

   Audiophile Pure Copper Duplex Receptacle
